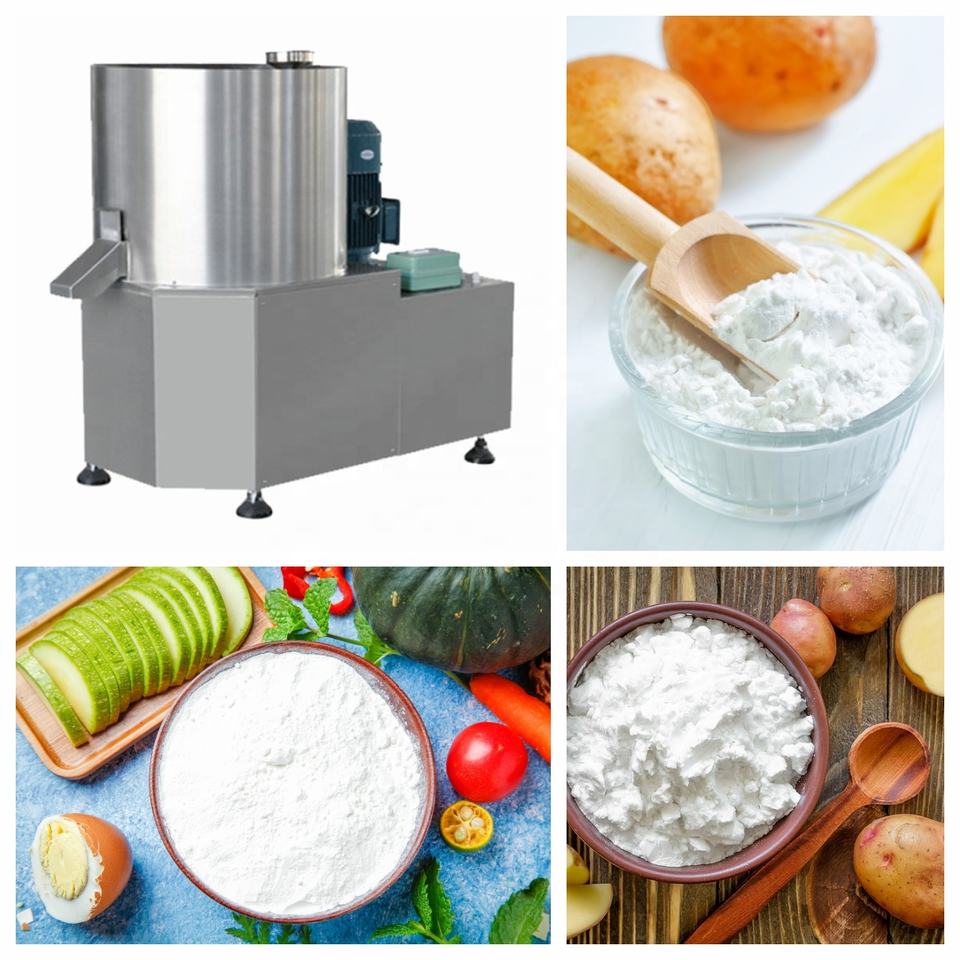

Mixer flour
Function:This machine is used to mix the raw material
Power:4kw 7.5kw 15kw
Capacity:20-30kg/time 70-80kg/time 170-180kg/time
Dimension:1050x1000x1200mm
Voltage:380V 50HZ Three Phase
Standard stainless steel:201SS 304SS
Double-screw extruder
Function: This machine can be used to extrude the raw material to different shape of food.
Features: it with cooling system to control temperature
Material of screw: 38 crmo Material
Technical Parameter:
Capacity:130-180kg/h Main MotorPower: 30kw
Feeding Power:0.75kw
Cutting Power:0.75kw
Oil pump:0.37kw
Heating ring :7X2kw=14kw
Screw Diameter:70mm
Screw Length:1520MM
Dimension:2900x900x1820mm
Quantity: 1pc
Voltage: 380V 50HZ Three Phase
Dryer machine
Function: This 5layer baking oven is used to baking the corn flakes ,this oven we use gas or diesel for baking.
Size:5.0 *1.2*2.3m
Power:3kw
Quantity: 1pc
Voltage: 380V 50HZ Three Phase
Standard Stainless steel is: 201 S.S
Speed control :invereter inside .
Weight :1800KG
Pulse grinder
This grinding machine is designed with the parts of main Unit, cyclone discharge, dust collector, control panel, etc. Main Unit: including Feeding Hopper, Auger Feeder (speed controlled), Rotor (blades and disc), Stator (liner with serrated teeth), Classifier (driven by motor), Frame, etc. Cyclone Discharge: including a Cyclone, Rotary Valve for discharge, Pipes, etc. Dust Collector: Including Filter Pockets, Pockets Holders, Filter Case, Pockets Cleaning device, Pipe, Fan, etc..
Modified Starch can be used in many fields like Textile, Food, paper making, building material, casting, oil drilling and so on.
Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have well-experienced managers, outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery.
Our products are sold very well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions. Our market share is increasing each year.
1. We can keep product design in the same level with internationally advanced technology consistently.
2. We have high diathesis staff and excellent processing equipment, and quality control runs through the whole production process from parts stock to the beginning of production.
3. We can guarantee customers superior quality machines up to design requirements and perfect working state.
4. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.
5. We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
6. We provide 1 year complete Guarantee and life-time maintenance service.
Q1: What is your payment term?
A1: 30% T/T as down payment, 70% balance paid before shipping. Or Irrevocable L/C at sight.
Q2: What is your warranty for machinery?
A2: Our warranty is 24 months, life time service.
Q3: Can you arrange shipment?
A3: Yes,we can arrange the shipment for customer according to our customers’ requirements.
Q4: Do you provide installation and commissioning?
A4: Yes, we provide service to send technicians for machine installation and commissioning, machine running and local team training.
Q5: Do you provide formula for machine?
A5: Yes, we provide the formula.we can help adjust the formula according to customer's local taste if customer require.
Q6: Do you make customized machine?
A6: Yes, we provide machine custom service according to customer's requirements. We also provide turnkey solution if customer require.
