Automatic Instant Powder Baby Food Production Line Nutritional Infant Breakfast Baby Food Making Machine.

Availability:

Product Description

Automatic instant powder baby food production line nutritional infant Breakfast Baby Food making machine.
Product Description

Automatic instant powder baby food production line nutritional infant Breakfast Baby Food making machine.

   Baby Food Processing Equipment uses rice, corn, beans and all kinds of grains as raw materials. Through extruding, inflating, drying, crushing and mixing, it could produce many kinds of nutrition powder, such as baby rice powder, sesame paste, beans powder and so on. This line could finish all the process automatically from the feeding to the end. It has features of easy operation, no leak of powder dust, sanitation, energy-saving and adding all kinds of raw materials and nutriment easily.

Automatic instant powder baby food production line nutritional infant Breakfast Baby Food making machine.

1. Raw Materials: Corn, Beans and All Kinds of Grains
2. Products: Baby Rice Powder, Sesame Paste, Beans Powder etc.
3. Capacity: 100-150 KG/H,200-250 KG/H,400-500 KG/H
4. Flow Chart: Mixing — Extrusion —Baking — Grinding
5. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
6. Machines Materials: All the machines are made by food grade stainless steel.
Product parameters
Model
Installed power
Real power
output
Dimension
MT65
66kw
50kw
100-150kg/h
19000x1200x2200mm
MT70
100kw
67kw
200-240kg/h
21000x1500x2200mm
MT85
130kw
80kw
400-500kg/h
30000x3500x4300mm
Detailed Images

Mixer

Output:10-30kg/load Power:4kw Tank Size: φ600 x500mm
Dimention:1000*800*1200mm
Flour Mixer is used to mix the raw material, like
cornflour , rice flour, fish bone flour with liquid and other additives.
Stainless steel structure, the parts in contacting with the raw material or products, cover small area, easy cleaning and operate stably.

Screw conveyor

Driving Power: 0.75kw Dimension: 2700×500×2400mm Screw Conveyor is used to convey the materials to the feeder of the extruder.
Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a
sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.

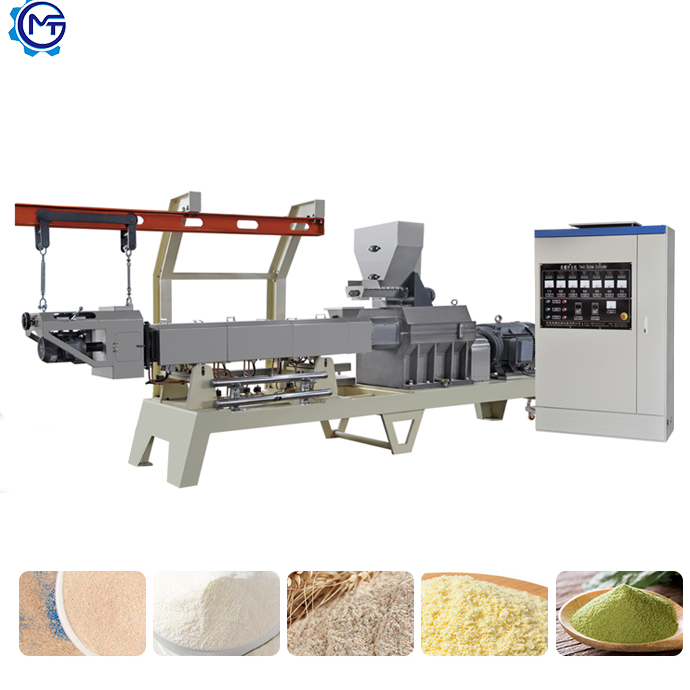

Double Screw Extruder Machine

MT-65 Double Screw Extruder
serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing, de-gassing, cooking and forming.

Dryer

Technical Parameter:
Size:4.5*1.4*1.8m
Power:3.75kw

Function: this high temperature oven is used to baking the corn flakes ,this oven we use gas for baking ,and there are both side
baking system ,can make the corn flakes more crisp.
Company information
Our company
Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have well-experienced managers,outstanding engineers as well as well trained techincal workers.By constant technical exchange with well_known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery. Our products are sold very
well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions.Our market share is increasing each year.
Certifications
We can provide the electronic edition certificates for Jinan MT Machinery extruded China High quality breakfast cereals process full automatic sugar corn flakes production line if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates.
Packing & Delivery
Packaging
Size
according to exact machine
Weight
according to exact machine
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Before sale services:
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.

Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory lay out.
2.Welcome to visit our factory or the domestic clients’factory.
3.Inspect the machine before leaving the factory.

After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and training. The client need provide room, food, round-trip transportation, visa fee and a nominal daily subsidy per person.
